Demo

<x-gangnam-style></x-gangnam-style>

Demo

<x-megabutton>Mega button</x-megabutton>

Mega button

Defining Web Components

key players

  • <template>- Scaffold/Blueprint
    • inert chunks of clonable DOM
  • Shadow DOM - Mortar/glue
    • building blocks for encapsulation & boundaries inside of DOM
  • <element> (custom elements) - Toolbelt
    • create new HTML elements - expand HTML's existing vocabulary
    • extend existing DOM objects with new imperative APIs

Templates

scaffold / blueprint

Templates...

not
a new concept

Oldschool templates

Method #1: "offscreen" DOM using [hidden] or display:none

<div id="mytemplate" hidden>
  <img src="logo.png">
  <div class="comment"></div>
</div>
  1. We're working directly w/ DOM.
  2. Resources are still loaded (e.g. that <img>)
  3. Style and theming is painful.
    • embedding page must scope all its CSS to #mytemplate.
    • no guarantees on future naming collisions.

Oldschool templates

Method #2: manipulating markup as string. Overload <script>:

<script id="mytemplate" type="text/x-handlebars-template">
  <img src="logo.png">
  <div class="comment"></div>
</script>
  1. encourages run-time string parsing (via .innerHTML)
    • may include user-supplied data → XSS attacks.

Examples: handlebars.js, John Resig's micro-template script

Proper templating

<template>

Contains inert markup intended to be used later:

<template id="mytemplate">
  <img src="">
  <div class="comment"></div>
</template>
  1. We're working directly w/ DOM again.
  2. Parsed, not rendered
    • <script>s don't run, images aren't loaded, media doesn't play, etc.

<template>

  • Appending inert DOM to a node makes it go "live":
var t = document.querySelector('#mytemplate');
t.content.querySelector('img').src = 'http://...';
document.body.appendChild(t.content.cloneNode(true));
.content provides access to the <template>'s guts:

interface HTMLTemplateElement : HTMLElement {
  attribute DocumentFragment content;
}

$$$

Shadow DOM

mortar / glue

Turns out...

Browser vendor's have been holding out on us!

  • DOM nodes can already "host" hidden DOM.
  • It can't be accessed traversing the DOM.

Shadow DOM

gives us encapsulation in the DOM and from JS

Encapsulation...

not
a new concept

Attaching Shadow DOM to a host

Shadow tree is rendered instead

Creating Shadow DOM

<div id="host">
  <h1>My Title</h1>
  <h2>My Subtitle</h2>
  <div>...other content...</div>
</div>

var host = document.querySelector('#host');
var shadow = host.createShadowRoot();
shadow.innerHTML = '<h2>Yo, you got replaced!</h2>' +
                   '<div>by my awesome content</div>';
// host.shadowRoot;

My Title

My Subtitle

...other content...

Unstyled markup != sexy

Style encapsulation

<style>s defined in ShadowRoot are scoped.

var shadow = document.querySelector('#host').createShadowRoot();
shadow.innerHTML = '<style>h2 { color: red; }</style>' +
                   '<h2>Yo, you got replaced!</h2>' +
                   '<div>by my awesome content</div>';

My Title

My Subtitle

...other content...

Protection from the outside world

Author's styles don't cross shadow boundary by default.

var shadow = document.querySelector('#host').createShadowRoot();
shadow.innerHTML = '<style>h2 { color: red; }</style><h2>Yo, you got replaced!</h2>' +
                   '<div>by my awesome content</div>';
// shadow.resetStyleInheritance = true; // click me
// shadow.applyAuthorStyles = true; // click me

My Title

My Subtitle

...other content...

Styling the host element

  • Allows reacting to different states:
<style>
@host {
  /* Gotcha: higher specificity than any selector, lower than <style> attribute. */
  * {
    opacity: 0.2; transition: opacity 400ms ease-in-out;
  }
  *:hover { opacity: 1; }
}
</style>

My Title

My Subtitle

...other content...

Custom pseudo elements

input[type=range].custom {
  -webkit-appearance: none;
  background-color: red;
}
input[type=range].custom::-webkit-slider-thumb {
  -webkit-appearance: none;
  background-color: blue;
  width: 10px;
  height: 40px;
}

List of pseudo elements: WebKit, FF

Style hooks: custom pseudo elements

Author allow certain elements to be styled by outsiders.

<style>
  #host::x-slider-thumb {
    background-color: blue;
  }
</style>
<div id="host"></div>
<script>
document.querySelector('#host').createShadowRoot().innerHTML = '<div>' +
  '<div pseudo="x-slider-thumb"></div>' +
'</div>';
</script>
  • Name needs to be prefixed with "x-"
  • Can't access from outside JS, but can style them!

Style hooks: CSS Variables

theming

Author includes variable placeholders:

button {
  color: var(button-text-color);
  font: var(button-font);
}

Embedder applies styles to the element:

#host {
  var-button-text-color: green;
  var-button-font: "Comic Sans MS", "Comic Sans", cursive;
}

DEMO

Remember our host node

<div id="host">
  <h1>My Title</h1>
  <h2>My Subtitle</h2>
  <div>...other content...</div>
</div>

that guy rendered as:

<div id="host">
  #document-fragment
    <style>h2 {color: red;}</style>
    <h2>Yo, you got replaced!</h2>
    <div>by my awesome content</div>
</div>

...everything was replaced when we attached the shadow DOM

Insertion points

funnels for host's children

Insertion points

  • content.getDistributedNodes(): list of elements distributed in the insertion point.
<div id="host">
  <h1>My Title</h1>
  <h2>My Subtitle</h2>
  <div>...other content...</div>
</div>

<style>
  h2 {color: red;}
</style>
<hgroup>
  <content select="h2"></content>
  <div>You got enhanced</div>
  <content select="h1:first-child"></content>
</hgroup>
<content select="*"></content>

My Title

My Subtitle

...other content...

Cha-

ching!

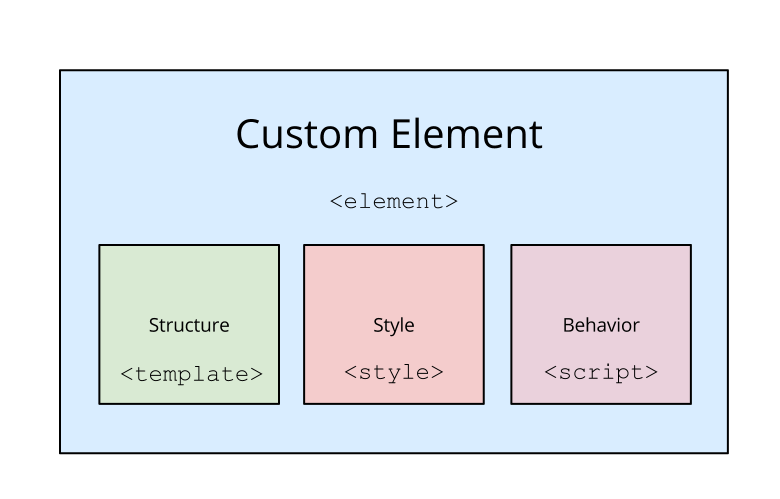

Custom Elements

Putting it all together

Encapsulation

Creating custom elements

Define a declarative "API" using insertion points:

<element name="x-tabs">
  <template>
    <style>...</style>
    <content select="hgroup:first-child"></content>
  </template>
</element>

Include and use it:

<link rel="components" href="x-tabs.html">
<x-tabs>
  <hgroup>
    <h2>Title</h2>
    ...
  </hgroup>
</x-tabs>

Define an imperative API

<element name="x-tabs" constructor="TabsController">
  <template>...</template>
  <script>
    TabsController.prototype = {
      doSomething: function() { ... }
    };
  </script>
</element>

Declared constructor goes on global scope:

<link rel="components" href="x-tabs.html">
<script>
var tabs = new TabsController(); // or document.createElement('x-tabs')
tabs.addEventListener('click', function(e) { e.target.doSomething(); });
document.body.appendChild(tabs);
</script>

Or, extend elements


<element name="x-megabutton" extends="button" constructor="MegaButton">
  <template>
    <content></content>
  </template>
  <script>
    MegaButton.prototype = {
      megaClick: function(e) { alert('BOOM!'); }
    };
  </script>
</element>

Use it:

<link rel="components" href="x-megabutton.html">
<x-megabutton>Mega button</x-megabutton>

You want this awesome

  • Shadow DOM, <template> are in Chrome 25
  • There's another option...

Dart

  • Language, libraries, tools, editor, VM, package manager
  • Familar, structured, scalable
  • Web Components polyfill for modern browsers
  • Open Source, Compiles to JavaScript

Why Dart?

More developers building more complex apps for the modern web

The Java (might) you know

public class Money {
  private int amount;
  public Money(double amount) { this.amount = Math.floor(amount * 100); }
  public Money(int amount) { this.amount = amount; }
  public Money(String amount) { this(Double.parseDouble(amount); }

  public Money add(Money other) { return new Money(this.amount + other.amount); }
  public Money add(Money other, boolean chargeTax) {
    return new Money(add(other).amount * 0.93);
  }

  public int getAmount() { return amount; }
}

The Dart you'll love

class Money {
  final int amount;
  static final Money ZERO = new Money(0);

  Money(this.amount);
  Money.fromDouble(double amount) : this((amount*100).toInt());

  Money add(Money other, {bool chargeTax: false}) {
    var newAmount = (this.amount + other.amount) * (chargeTax ? 0.93 : 1.0);
    return new Money(newAmount.toInt());
  }

  Money operator +(Money other) => add(other);

  String toString() => amount.toString();
}

Lexical this

class AwesomeButton {
  int awesomeDial;
  ButtonElement elem;

  AwesomeButton(this.elem) {
    elem.on.click.add((e) => crankTheAwesome());
  }

  crankTheAwesome() {
    awesomeDial = 11;
  }
}

Easy to understand

recalculate(origin, offset, estimate) {
  ...
}


num recalculate(Point origin, num offset, {bool estimate: false}) {
  ...
}

Easy DOM


import 'dart:html';

void main() {
  var button = new ButtonElement();

  button.text = 'Click me';
  button.classes.add('important');

  button.onClick.listen((e) => window.alert('Clicked!!'));

  document.body.elements.add(button);
}

Method Cascades


import 'dart:html';

void main() {
  var button = new ButtonElement()
       ..text = 'Click me'
       ..classes.add('important')
       ..onClick.listen((e) => window.alert('Clicked!!'));

  document.body.elements.add(button);
}

Compiling to JavaScript

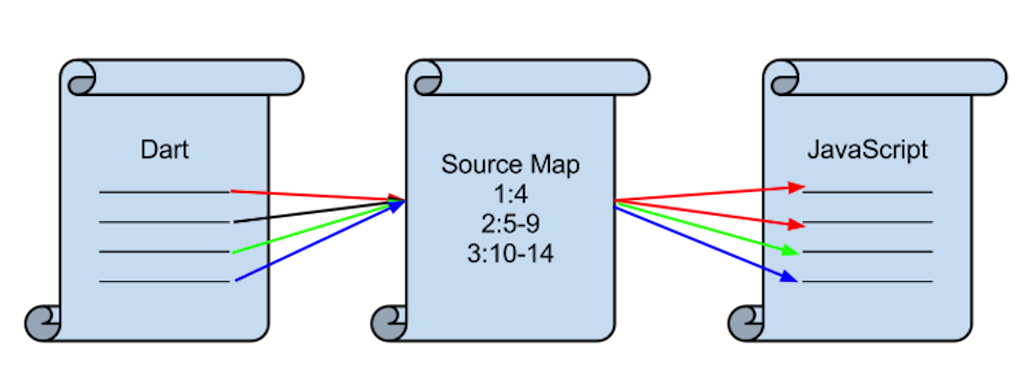

Easy debugging with Source Maps

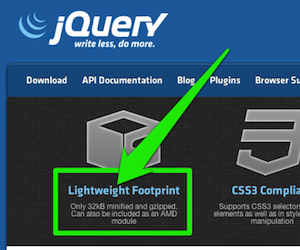

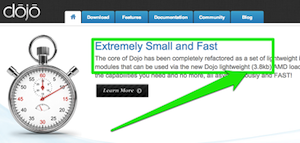

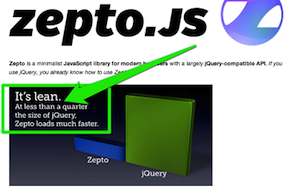

Size is important, but...

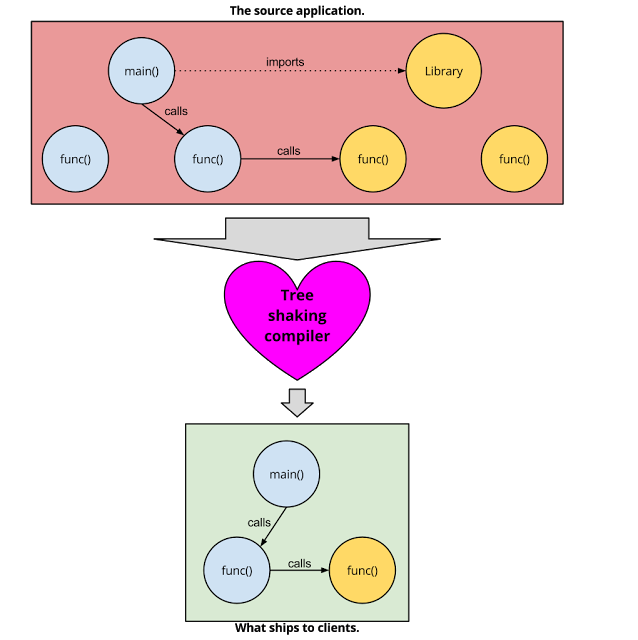

Stop paying the complete library tax

Package Management with Pub

Dart with Web Components

A structured language for a component future

Dart Web UI

  • Web Components polyfill
  • Dynamic data driven templates with live two-way bindings
  • Fast developer cycles
  • Compiles to JavaScript/HTML to work across modern browsers today

Dart Web UI Demos

  • Simple data binding - HelloWorld.html
  • Conditionals - Conditional.html
  • Iterations - Iterate.html
  • Complex Object Binding - ComplexObjectBinding.html
  • Custom elements - Ludicrously Simple TODO
  • Calling methods on custom elements - CallMethodOnCustomElement.html
  • Timer bindings w/ lifecycle events - clock_page.html
  • TodoMVC Demo - code
  • Bootstrap widgets demo - code

Simple Data Binding

<p>MDV is {{ superlative }}</p>

<button id="change-it" on-click="changeIt()">Change</button>

import 'package:web_ui/web_ui.dart';

@observable
String superlative = 'awesome';
int i = 0;

List<String> alternatives = const <String>['wicked cool', 'sweet', 'fantastic'];

changeIt() => superlative = alternatives[i++ % alternatives.length];

main() { }

Conditionals

<select name="language" bind-value="langChoice">
  <option value="">-- Choose one --</option>
  <option value="js">JavaScript</option>
  <option value="java">Java</option>
</select>

<div template if="langChoice != null && !langChoice.isEmpty">
  <h3>{{ langChoice }}</h3>

  <code><pre>{{ languageExamples[langChoice] }}</pre></code>
</div>

Map languageExamples = {
  'js': 'function Person(firstName, lastName) { ... };',
  'java': 'public class Person { ... }'
};

String langChoice = '';

main() { }

Iteration

<ul template iterate="feature in features">
  <li>
    <label>
      <input type="checkbox" value="{{ feature }}"
             on-click="addToFavorites($event)">
      {{ feature }}
    </label>
  </li>
</ul>

import 'dart:html';

List<String> features = const <String>['lexical scope', 'closures', 'getters and setters', ...];
List<String> userFavorites = new List<String>();

addToFavorites(Event e) {
  InputElement checkbox = e.target;
  var fav = checkbox.value;

  // add or remove from userFavorites
}

main() { }

Complex Object Binding

<input type="text" name="firstName" bind-value="person.firstName" placeholder="First name">
<input type="text" name="lastName" bind-value="person.lastName" placeholder="Last name">

<div class="full-name">{{ person.firstName }} {{ person.lastName }}</div>

class Person {
  String firstName;
  String lastName;
  Address address;
  Person(this.firstName, this.lastName, this.address);
}

Person person;

main() {
  person = new Person('Bob', 'Smith', new Address('Main St', 'Metropolis', '11122'));
}

Custom Elements (pt 1)

The main HTML page.

<input type="text" id="new-todo">

<button on-click="createNewTodo()">
  Create New Todo
</button>

<ul template id="todos" iterate="todo in todoItems">
  <li>
    <x-todo-item bind-todo="todo"></x-todo-item>
  </li>
</ul>

Custom Elements (pt 2)

The custom Element.

<!DOCTYPE html>
<html>
  <body>
    <element name="x-todo-item" constructor="TodoItemComponent"
             apply-author-styles="" extends="div">
      <template>
        <label class="{{ completeClass }}">
          <input type="checkbox" on-change="toggle()">
          <span>{{ todo.actionItem }}</span>
        </label>
      </template>
      <script type="application/dart" src="TodoItemComponent.dart"></script>
    </element>
  </body>
</html>

Custom Elements (pt 3)

The custom element class definition.

import 'package:web_ui/web_ui.dart';
import 'models.dart';

class TodoItemComponent extends WebComponent {
  TodoItem todo;

  toggle() => todo.toggle();

  String get completeClass => todo.complete ? 'completed' : '';
}

Custom Elements (pt 4)

The model class.

library models;

class TodoItem {
  String actionItem;
  bool complete = false;

  TodoItem(this.actionItem);

  toggle() => complete = !complete;
}

Lifecycle Events

<h1>Web UI FTW!</h1>

<x-clock></x-clock>

class Clock extends WebComponent {
  Date time = new Date.now();
  Timer timer;

  inserted() {
    timer = new Timer.repeating(1000, (t) {
      time = new Date.now();
      watchers.dispatch();
    });
  }

  removed() {
    timer.cancel();
  }
}

Call Custom Method on Custom Element

<div is="x-fancy"></div>

<element name="x-fancy" extends="div">
  <template>
    This is fancy!
  </template>
  <script type="application/dart">
  import 'package:web_ui/web_ui.dart';
  class Fancy extends WebComponent {
    beFancy() {
      appendText("So wear a bow tie");
    }
  }
  </script>
</element>

<button on-click="query('div[is=x-fancy]').xtag.beFancy()">Class it up</button>

Timer bindings with lifecycle events

class Clock extends WebComponent {
  @observable
  DateTime time = new DateTime.now();
  Timer timer;

  inserted() {
    timer = new Timer.repeating(new Duration(seconds:1), (_) {
      time = new DateTime.now();
    });
  }

  removed() {
    timer.cancel();
  }
}

Summary

  • Web Components are composable, declarative, reusable
    • Dart isn't required, works with JavaScript, too
  • Dart is structured, scalable, familiar
  • We think they go well together
  • Please try them and send us feedback
  • Thanks!
